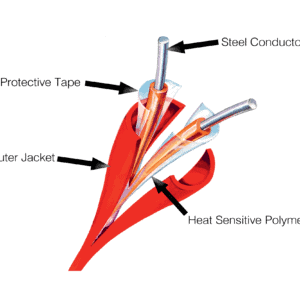

The PIM-530 Detection Control Module acts as an interface between a main fire alarm control panel detection circuit or addressable node and the Protectowire Digital Linear Heat Detector.
The unit operates using conventional initiating device circuit technology and contains an integrated on-board Protectowire Alarm Point Location Meter. The module also includes a time and date clock, 64 64-event history log, Form C contacts for the host panel interface and dual 4-20mA status outputs.
The PIM-530 is housed in an IP66 Enclosure.
Download the Data Sheet for Technical Specifications and Ordering Information.
| LHD INTERFACES | ||
| PW-PIM-530E | LHD Interface Module with Display & Nav Buttons c/w IP66 Enclosure | |
| PW-PIM-530EI | IS LHD Interface Module with Display & Nav Buttons c/w IP66 Enclosure | |
| TEC083A-ET | Linear Heat Cable EOL & Test | |
| TEC083A-LI | Linear Heat Cable Interface | |
PW-PIM-530 LHD Interface Datasheet
Note: Login is required to access/download Technical Information
