The ILIA Beam Smoke Detector detects smoke and fire and is suitable for standard interior applications.

The SecuriBeam ILIA uses an infrared light beam to detect smoke and fire lightning-fast, even under the most difficult conditions. Its high-tech features will appeal to anyone unwilling to compromise on safety in large buildings.

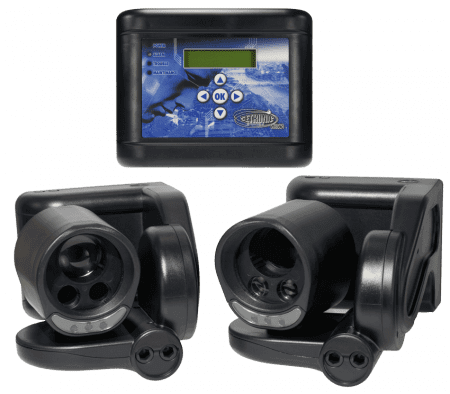

The ILIA consists essentially of three components: a transmitter, a receiver and a remote control unit. The receiver meticulously evaluates the transmitted infrared light beam. Unlike conventional models, the fire detector detects not just smoke-related attenuations but also typical modulation frequencies caused by unusual temperature increases and flames – for three times the safety! If, during analysis of the light beam, the detector detects any danger, it immediately triggers an alarm signal.

The range includes an ATEX version and a special dust variant (ILIA-PRO) for harsh environments.

ILIA

For use in centres of cultural heritage, atriums, high rooms and airport terminals

• Transmitter/receiver system
• Control unit for operating up to 8 ILIA detectors for parametrisation, testing and maintenance work
• Detection of turbidity and frequency changes caused by flames
• Approvals: VdS, UL, ActivFire, SIL
• Monitoring range: 10 – 200 m
• Protection type: IP65
• Permissible temperature range: −20 °C to +65 °C

ILIA PRO

For very harsh environments such as recycling plants, stables and dusty industrial applications

In addition to the features offered by ILIA (see above), ILIA PRO also provides the following benefits:

• Lower sensitivity alarm thresholds
• Larger alarm delay times
• Possibility of setting a pre-alarm

ILIA ATEX

For environments at risk of explosions

• Transmitter/receiver system for ATEX environments
• Approvals: ATEX, SIL
• ATEX zones: 1, 2, 21, 22
• Monitoring range: 10 – 120 m
• Protection type: IP66
• Permissible temperature range: −30 °C to +65 °C
