Fire Suppression – XERO Aerosol Range

XERO’s advanced fire suppression technology delivers a compact, cost-effective fire-extinguishing solution for a wide range of industries.

The solid aerosol-forming compound is housed in a hermetically sealed stainless steel canister, which is non-pressurised and capable of withstanding harsh, corrosive environments. When activated, the solid compound transforms into an ultra-fine, condensed aerosol, which is propelled into the protected area. Fire suppression is achieved by interrupting the chemical chain reaction that occurs during a fire, effectively extinguishing it without depleting oxygen levels or causing negative environmental impacts.

Versatile Solution

XERO units are available either as electrically activated units, which can be integrated into any fire detection and control system, or as standalone thermally activated units. The units’ compact size, minimal maintenance requirements, and long service life provide significant flexibility in applications.

As such, XERO units can protect all high-fire-risk applications, including battery energy storage systems, EV charging stations, EV vehicles, electrical switchgear, transformer rooms, flammable liquid storage areas, power plants, and mining vehicles.

Hazardous Environments

Some XERO electrically operated units are certified for use in hazardous-area enclosed environments. These units are UL-listed and ATEX-certified.

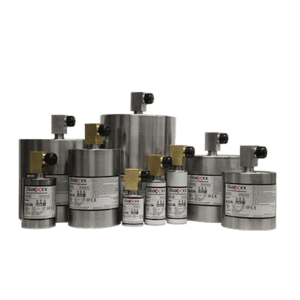

The XERO-EX product line is suited for enclosed hazardous areas in industries such as Oil & Gas, Power Generation, Flammable Liquid and Hazardous Material Storage, Battery Storage, Laboratories, Transportation and Manufacturing.

Highly Economical

XERO condensed aerosol generators are highly compact, yet extremely effective fire suppression units that are easy to install and require very little maintenance. The units are non-pressurised, and no pipework is required to distribute the condensed aerosol fire suppressant throughout the protected area. This simple and robust design significantly reduces installation and maintenance costs.

The fire suppressant agent is non-corrosive and non-conductive, and leaves little residue when the post-discharge cleanup procedures are followed. Downtime, cleanup, and repair costs are therefore minimised in the event of a fire or discharge. XERO units can also be quickly and easily replaced, further reducing costly delays in the event of a fire.

FEATURES

  • Sizes: 100g, 200g, 300g, 500g, 750g, 1kg, 3kg
  • Stainless steel housing
  • Adjustable stainless steel bracket
  • 15-Year service life
  • Electrical actuation
  • 500-gram slimline option
  • Thermal activation devices
  • Zero ozone depletion
  • Non-corrosive and non-conductive
  • UL-listed
  • ATEX-approved version
  • Kitemark™ certified
  • ActivFire® certified
  • 2-Year warranty

Download the Datasheet for Technical Specifications and Ordering Information.

Electrical Activation Devices & Mounting Brackets
HJ-XERO-100E XERO Aerosol Generator, 100g, Electrical Activation, (no mounting bracket)
HJ-XERO-100MB Adjustable Mounting Bracket for XERO-100E
HJ-XERO-200E XERO Aerosol Generator, 200g, Electrical Activation, (no mounting bracket)
HJ-XERO-200MB Adjustable Mounting Bracket for XERO-200E
HJ-XERO-300E XERO Aerosol Generator, 300g, Electrical Activation, (no mounting bracket)
HJ-XERO-300MB Adjustable Mounting Bracket for XERO-300E
HJ-XERO-500E XERO Aerosol Generator, 500g, Electrical Activation, (no mounting bracket)
HJ-XERO-500MB Adjustable Mounting Bracket for XERO-500E
HJ-XERO-500SE XERO Aerosol Generator, 500g, Electrical Activation, Slimline (no mounting bracket)
HJ-XERO-500SMB Adjustable Mounting Bracket for XERO-500E Slimline
HJ-XERO-750E XERO Aerosol Generator, 750g, Electrical Activation, (no mounting bracket)
HJ-XERO-750MB Adjustable Mounting Bracket for XERO-750E
HJ-XERO-1000E XERO Aerosol Generator, 1000g, Electrical Activation, (no mounting bracket)
HJ-XERO-1000MB Adjustable Mounting Bracket for XERO-1000E
HJ-XERO-3000E XERO Aerosol Generator, 3000g, Electrical Activation, (no mounting bracket)
HJ-XERO-3000MB Adjustable Mounting Bracket for XERO-3000E
Thermal Activation Devices
HJ-TAD-105 Thermal Activation Device, 105 ˚C
HJ-TAD-138 Thermal Activation Device, 138 ˚C
HJ-TAD-85 Thermal Activation Device, 85 ˚C

SALES INFORMATION

Datasheets


XERO Aerosol Fire Suppression Generator Range Datasheet

Approvals


XERO Product Certifications


XERO JAD Factory Quality Certifications

Environmental Certifications available on request

TECHNICAL INFORMATION

Note: Login is required to access/download Technical Information

Quick Installation Guide


XERO Quick Installation Guide [PRQIG-0022]
