Automatic Fire Suppression – The BlazeCut T-Series system is a simple and cost-effective fire protection device for small enclosures.

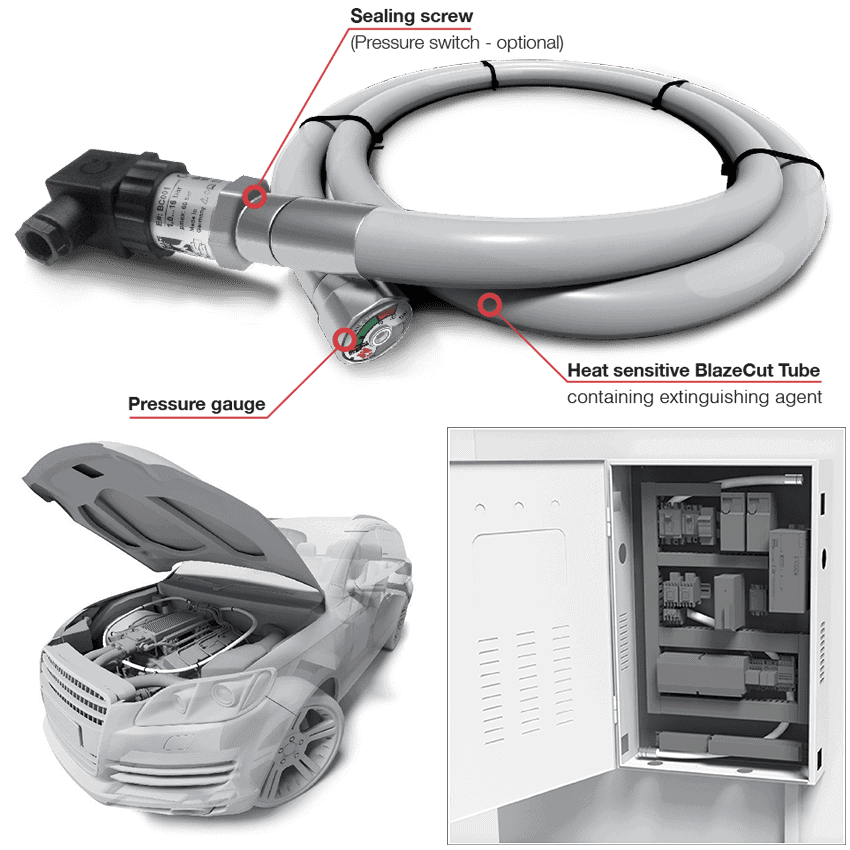

The T-Series system uses HFC-227ea, an extremely effective, clean, and people-safe extinguishing medium. The stand-alone system operates automatically and independent of a power supply by detecting higher temperatures. When the temperature in the protected enclosure rises to a critical level, the detection tube melts at the point where the effect of temperature is highest and releases the entire extinguishing agent stored in the tube directly onto the source of the fire.
The T-Series systems are available in various lengths from 25 cm up to 6 meters. The standard agent volume ranges from 0.25 kg to 2 kg, which is directly related to the system’s length and sufficient to protect enclosures with a volume between 0.1 m3 and 2.7 m3, respectively.
The range is suited for compact electrical enclosures through to engine bays and large data enclosures.
With the addition of a pressure switch, pressure loss can be detected, and a signal can be sent to an external device such as an alarm panel, warning buzzers, sounders, or beacons to initiate a shut-down through an external control panel.

Typical BlazeCut T-Series Applications:

• Engine compartments of vehicles, machines, pleasure boats
• Electrical, server, and battery cabinets
• Vending machines, POS machines, ATMs
• Electrical charging stations
• Enclosures with audio-video devices
• Small generators
